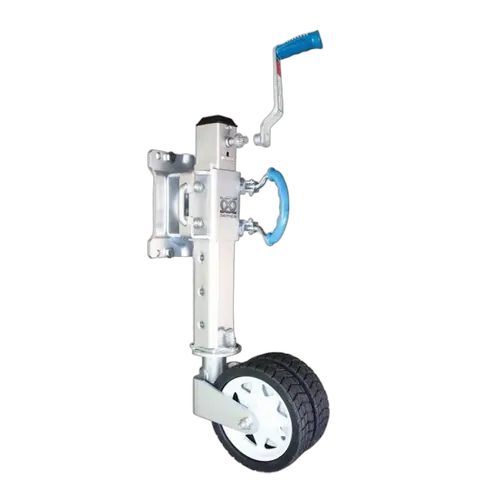

ARK XO Series Jockey Wheel 750
The ARK XO Series Jockey Wheel 750 is the pinnacle of off-road towing gear in Australia. Designed for extreme conditions and rugged terrain, this heavy-duty jockey wheel is trusted by campers, caravaners, and tradies who need a solution that won’t quit. With its 750kg load rating, dual off-road wheels, and reinforced frame, this wheel redefines strength and stability. Whether you’re towing a caravan, boat trailer, or utility trailer, the XO 750 delivers outstanding durability and versatility for all your towing needs.
One of the standout features of the ARK Jockey Wheel 750 is its advanced swing-up clamp and trailing yoke design. This system gives you 4 adjustable height positions with 250mm of range, all while keeping a centered pivot point for added strength and balance. The yoke can lock into 5 different positions when stowed, which is a game-changer when avoiding stone guards, toolboxes, or jerry cans on your drawbar. This is pure convenience without compromise.
This wheel doesn’t just look tough—it’s engineered for serious performance. The 8mm thick clamp plate, 4 bolt pivot design, and heavy-duty outer casing ensure zero flex under load. Salt spray tested for 600 hours, the finish is rust-resistant, ideal for coastal or wet regions. And with sealed bearings inside its dual wheel setup, the ride is smooth, even when tackling gravel, dirt, or sand. Mounting is a breeze too—no welding required, just bolt straight to drawbars from 75mm to 150mm wide.
ARK has gone a step further with a magnetic, removable winding handle that stays out of the way and won’t get lost. It’s positioned to be clear of stone guards and toolboxes, making lifting your trailer effortless and frustration-free. Whether you’re setting up in the bush or readjusting on an uneven paddock, this jockey wheel is built to handle real-world towing conditions. This is the gear pros use—and now you can too.

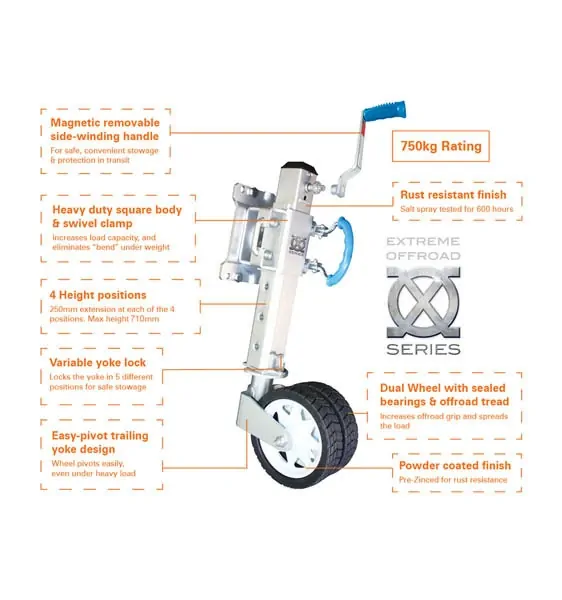

✅ Key Features
- 750kg load capacity with reinforced design
- Magnetic, removable side-wind handle
- 250mm height range in 4 adjustable positions

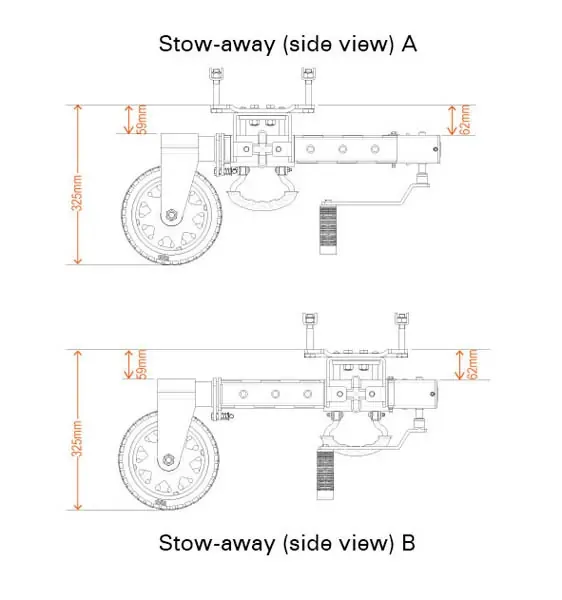

- 5-position yoke lock for versatile clearance
- Dual off-road wheels with sealed bearings
- Heavy-duty clamp with 8mm backing plate
- Rust-resistant finish, tested to 600 salt spray hours
📄 What’s Included
- 1 x ARK XO750 Jockey Wheel Unit
- Magnetic removable handle
- Mounting hardware set
- Heavy-duty clamp (pre-installed)
- Dual off-road wheels with bearings
- Instruction leaflet
- Yoke lock mechanism
- Rust-resistant external finish
🔧 How to Use
- Align jockey wheel to drawbar and mount using supplied hardware.
- Adjust to one of four height settings using the side clamp.
- Attach and use the magnetic winding handle to raise or lower.
- Once trailer is stable, remove handle for safety and storage.
- Stow the wheel and lock the yoke in a safe position using one of 5 angles.
❓ Frequently Asked Questions
Can the ARK XO750 be used on sand or mud?
Yes, the dual off-road wheels and sealed bearings are designed for soft terrain, providing traction and reducing sinkage.
What size drawbars does this fit?
It suits 75mm, 100mm, 130mm, and 150mm drawbars with no welding required—mounting hardware is included.
Is the magnetic handle strong enough to stay in place?
Absolutely. It’s engineered with a high-grade magnet that resists knocks and vibration, yet is easy to remove.
Does it come in different colours?
Yes, you can choose between a matte black finish or a stainless look. This listing features the stainless version.
